Product Highlights

  • 13th Gen Intel Core i9-13900H Processor
  • 16" Thin Bezel QHD+ 240Hz, Wide View Angle, 72% NTSC, G-Sync Matte Display
  • NVIDIA GeForce RTX 4060 8GB GDDR6
  • 16GB DDR5 at 4800MHz
  • 500GB Western Digital Blue SN570 M.2 NVMe
  • Intel Dual Band Wireless Wi-Fi 6E AX211 + Bluetooth
  • Thunderbolt 4 with Power Delivery DC in
  • Single Zone Multi-Color illuminated keyboard
  • Windows 11 Home 64-Bit Edition
  • 0.78-inches-thin slim design

Intel Inside®.
Extraordinary Performance Outside.

Sager recommends Windows

NP6860D

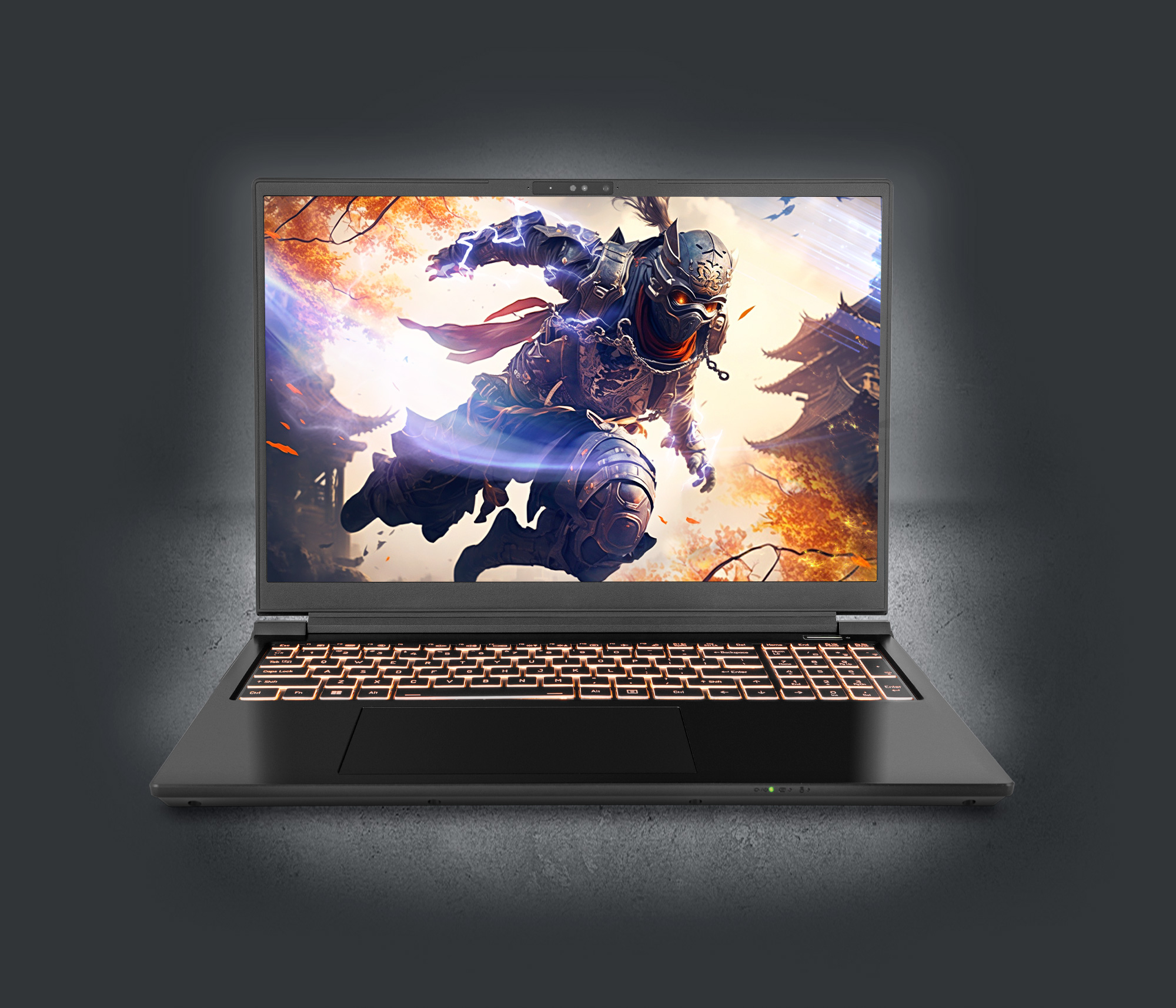

Meet the Remarkably Slim NP6860D

Meet the
Remarkably
Slim NP6860D

Unleash the colossal power concealed under the sleek metal shell of the NP6860D, which measures just 0.78 inches thin. Its 13th Gen Intel Core i9-13900H processor and cutting-edge NVIDIA GeForce RTX 4060 graphics work seamlessly with ultra-fast DDR5 memory, PCIe Gen 4 storage, 2.5Gbs Ethernet, Wi-Fi 6E wireless, and Thunderbolt 4 connectivity to expertly handle the demands of top-tier AAA games and content creation. Witness stunning clarity and smoothness as it springs to life on its 16" 16:10 QHD+ 240Hz G-Sync display.

Stunning Display - Made for Creators & Players

Stunning Display
Made for Creators & Players

Capture every engaging detail in superb life-like color and sharpness. NP6860Dís display produces 72% NTSC color gamut in precise 16:10 QHD+ resolution. Enjoy seamless gameplay and crisp motion, and never miss a beat. Its 240Hz refresh rate and G-SYNC technology stop stutters and tears before they can start.

  • QHD+ (2560 x 1600) Resolution
  • 240Hz Refresh Rate
  • 72% NTSC Color Gamut
  • G-Sync Display Technology
  • WVA Screen
New Hybrid Architecture 13th Gen Intel Core i9 Processor

New Hybrid Architecture
13th Gen Intel Core i9
Processor

Work hard play hard. Sager NP6860D achieves maximum performance with Intelís agile new Core i9-13900H hybrid processor. Its powerful P-cores tackles massive monumental tasks, running the latest AAA games, while its efficient specialized E-cores blaze through smaller ones. Intelligently designed to get more done, faster, smoother, and smarter than ever.

  • 13 Generation
  • 5.4GHz In Turbo Boost
  • 14 Cores
  • 20 Threads

DDR5-4800 RAM

4800MHz DDR5 memory boosts gaming, rendering, and multitasking at game-changing speeds, 50% faster than DDR4 at launch. Gain bar-raising performance with double the banks and double the burst length. Enjoy quicker transfers, less lag, and faster load times, downloads, and refresh rates.

NVIDIA GeForce RTX 4060 Graphics

NVIDIA GeForce RTX
4060 Graphics

Dial up the frame-rates on bleeding-edge games. NP6860Dís NVIDIA GeForce RTX 4060 GPU employs next-generation AI-powered DLSS 3 neural technology backed by hordes of the latest rt-cores, tensor cores, and shader processors to deliver up to 400% gains on flawless ray-traced graphics. Watch a stunning revolution in gaming graphics explode in real-time right before your eyes.

NVIDIA Advanced Optimus User Switchable GeForce RTX GPU & Intel GPU

Maximize performance, preserve battery life, and outrun latency with NVIDIA Advanced Optimus. Switch between your GPU and integrated graphics to take big wins and minimize power loss. Unlock all the benefits of G-SYNC displays for smooth, pristine, tear-free image quality in the most intense moments of any battle.

  • 8GB GDDR6 Memory
  • 140W Maximum TGP
    *Including 25W Dynamic Boost 2.0
  • Ada Lovelace Architecture
Narrow Bezels, Big Screen

Narrow Bezels,
Big Screen

NP6860D's slimmer bezels and smaller footprint make this compact powerhouse a highly-portable take-anywhere device to handle your most demanding tasks and most dazzling entertainment. Among the smallest in its class, everything shrunk but its 16" screen-size and its vast capabilities. Get the vibrant, colorful, eye-opening content you crave in a machine that packs-up fast and travels small.

NVIDIA Surround View

NVIDIA Surround View

Overwhelm your senses with 3x the screens. NP6860D supports up to 2 additional monitors via HDMI and Display-Port so you can explore fantastic worlds in full breathtaking HD surround.

Advanced System Cooling

Advanced
System Cooling

NP6860D has been designed to maintain optimal temperatures. Its maximized cooling system boasts a huge vapor chamber, dual 12V fans with more fan blades, and larger exhaust vents with ultra-thin fins to flush high-volume heat away from essential components. The large vapor chamber provides up to 185W Heat Flux of massive cooling power, delivering steady optimized system performance you can count on.


  • Vapor Chamber Cooling
  • 2 x 59 Blade Fans
  • 185W Heat Flux massive cooling
High Performance PCIe Gen4 X 4 Storage Capable

High Performance
PCle Gen4 X 4
Storage Capable

Wait less. Play more. The NP6860D features two ultra-fast speed PCIe Gen4 x4 SSD capabilities for load speeds of up to 7000MB/s* for blazing fast boot times and game loading.

* Sequential and random performance measurement based on the Samsung 980 PRO NVMe M.2 SSD

  • 2 x M.2 PCIe Gen 4x4 Storage Interface
Thunderbolt 4 with Power Delivery Input

Thunderbolt 4 with
Power Delivery Input

NP6860D's fast flexible 40Gbps Thunderbolt 4 port can connect and access extra storage at lightning-quick rates. Add an extra 8K display, or two in 4K. Daisy-chain more devices than ever, more securely, or charge while docked to Power Delivery Input (PD-In). Wake it with a touch or key-press on a connected peripheral. One port unlocks endless possibilities.

2.5 Gigabit LAN & Wi-Fi 6E Connection

2.5 Gigabit LAN &
Wi-Fi 6E Connection

Breakthrough bandwidth. Connect to the most advanced networks with 2.5 Gb ethernet or high-capacity Wi-Fi 6E for ultra-fast, uninterrupted HD and 4K streaming, competitive gaming, VR, and video conferencing without the lag or the headaches.

* Wi-Fi 6E = Faster Speed, Lower Latency and Higher Capacity compares to the Wi-Fi 6

Wi-Fi 6E LOGO

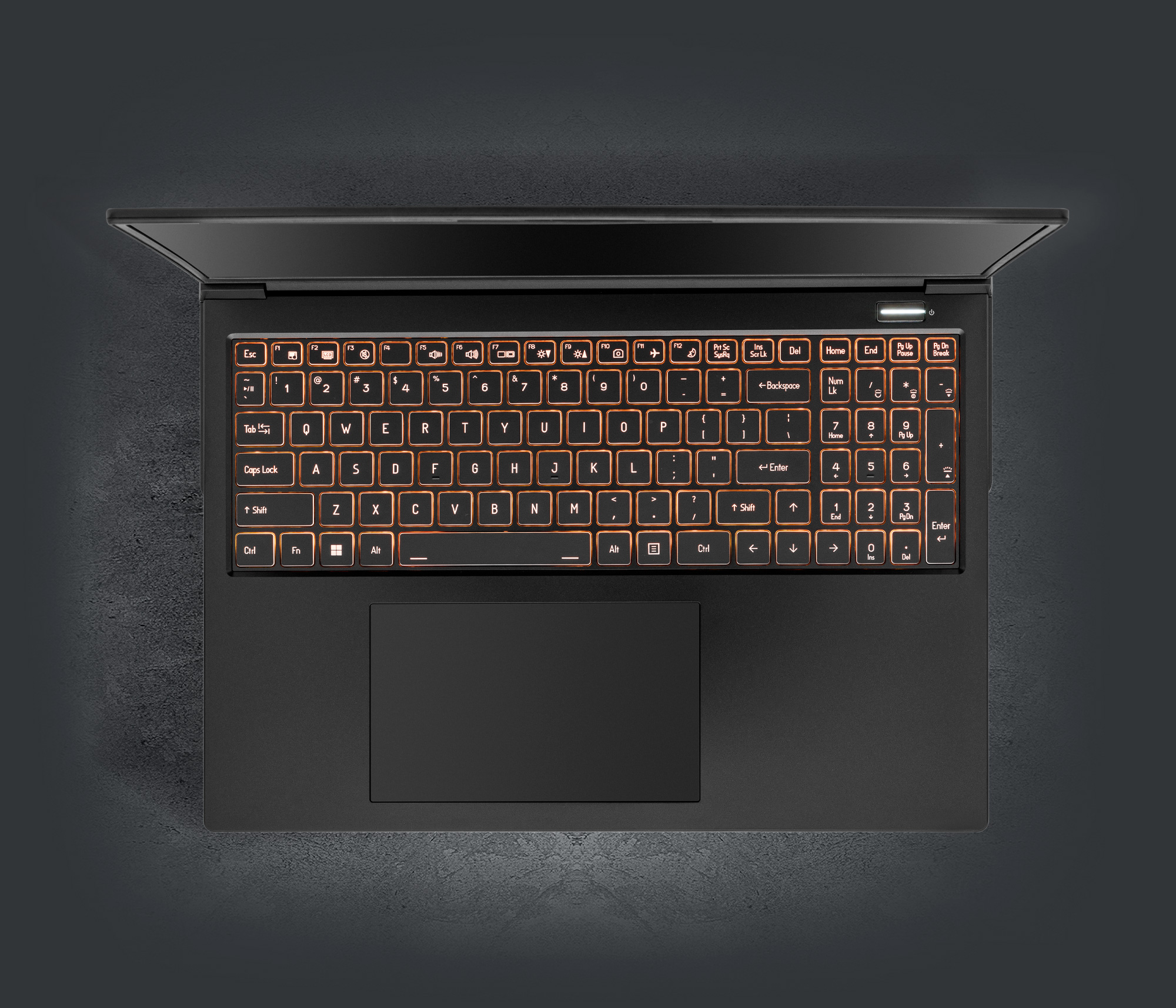

Customizable Single Color Illuminated Keyboard

Customizable
Single Color
Illuminated
Keyboard

Our sleek single color illuminated keyboard enhances the modern, sophisticated look of your NP6860D. Choose from 15 colors to suit your mood or your lifestyle at any moment, wherever that might be.

Processor

13th Gen Intel Core i9-13900H ( Max Turbo boost up to 5.40 GHz ), 6 P-cores & 8 E-cores / 20 thread, 24MB Smart Cache

Memory

Supports Dual Channel DDR5
Two 262Pin SODIMM sockets, support for DDR5 up to 4800MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module

Display

16” QHD+ (2560x1600) 240Hz, Wide View Angle, 72% NTSC, G-Sync Display, Matte Finished

Graphics
Processor
NVIDIA Advanced Optimus (Dynamic Display Switching) Technology
Support 4 active displays
Support NVIDIA Surround View via HDMI x1, mini DP x1


NVIDIA GeForce RTX 4060 Laptop GPU
- 8GB GDDR6 Video RAM
- Microsoft DirectX 12
- NVIDIA CUDA Technology
- Support PCIe Gen4
- Maximum TGP: 140 W (including 25W Dynamic Boost 2.0)


Intel Iris Xe Graphics (Integrated in Core i9-13900H Processor)
- Intel Xe Micro architecture
- Variable Rate Shading
- Microsoft DirectX 12 compatible
- Intel DLBoost: DP4A

Storage

Two M.2 2280 SSD PCIe Gen 4x4 interface

Audio System

High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers
Sound Blaster Studio Pro

Pointing Device

Built-in Click pad with Microsoft PTP multi-gesture and scrolling function

Keyboard

Multi-languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)

I/O Ports

1 HDMI output Port (with HDCP)
1 Mini DisplayPort 1.4 output Port
1 Thunderbolt 4 Port with Power Delivery DC in (Type C)
1 USB 3.2 Gen2 port (Type C) 2 USB 3.2 Gen1 Ports (Type A, 1 x powered USB port, AC/DC)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000/2500Mbps)

Card Reader

Micro SD Push-Push Card reader

Slots

Three M.2 Card Slots
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface

Communication

Built-in 2.5 Gigabit Ethernet LAN
Intel Dual Band Wireless Wi-Fi 6E AX211 + Bluetooth, M.2 interface

Security

Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)

Power System

Embedded 4 cells Polymer battery pack 73WH
Full-Range AC-in 100~240V, 50~60Hz, 230W AC Adapter, DC output 20V, 11.5A

OS Support

Windows 11 (64-bit)

Certificates

Windows 11 (64-bit) Logo
HDMI Logo

Weight and Dimensions

5.95 lbs. including 73WH battery pack
14.15" (w) x 10.75" (d) x 0.78" (h)

Other Features

Metal top and bottom case
Built-in Dual Sensor 2.0M FHD Hello Camera with TNR (Temporal Noise Reduction)
FlexiCharger
Virtual Reality ready
Windows Mixed Reality compatible
NVIDIA G-Sync Technology at Dynamic Display Switch mode
Intel DTT (Dynamic Tuning Technology)




Specifications are subject to change without notice
