Product Highlights

  • 13th Gen Intel Core i7-13500H Processor
  • 14" Thin Bezel Full HD 144Hz, Wide View Angle, 72% NTSC Matte Display
  • Intel Iris Xe Graphics
  • 8GB DDR4 at 3200MHz
  • 500GB Western Digital Blue SN570 M.2 NVMe
  • Intel Wireless Wi-Fi 6E AX211+ Bluetooth
  • White-LED illuminated keyboard
  • Thunderbolt 4 with Power Delivery DC in
  • Windows 11 Home 64-Bit Edition
  • 0.69 inches thin Ultra-slim design


Features & Design Specifications

Intel Inside®.
Extraordinary Performance Outside.

Sager recommends Windows

NP3646Z

0.69 Inches
Ultra-Slim
Design

Smooth, slim, and trim. NP3646Z blends substance with style. We've assembled the latest high end technologies into an ultra-slim, sleek and stylish body. Best of all, it measures only 0.69 inches thin and weighs a mere 2.98 lbs.

New Hybrid Architecture
13th Generation
Intel Core Processor

Work hard play hard. Sager NP3646Z achieves maximum performance with Intel’s new Core H series hybrid processor. Its powerful P-cores tackles massive monumental tasks, running the most advanced games and apps, while its efficient specialized E-cores blaze through smaller ones. Intelligently designed to get more done, faster, smoother, and smarter than ever.

  • 5.0GHz In Turbo Boost
  • 14 Cores
  • 20 Threads
  • 24MB Smart Cache

* Specification based on Intel Core i7-13700H Processor

DDR4-3200 RAM

Take advantage of faster clock speeds and bandwidth with next generation DDR4 memory. 64GB of Dual-Channel memory at 3200MHz delivers top performance for the most demanding and complex high-end games and media.

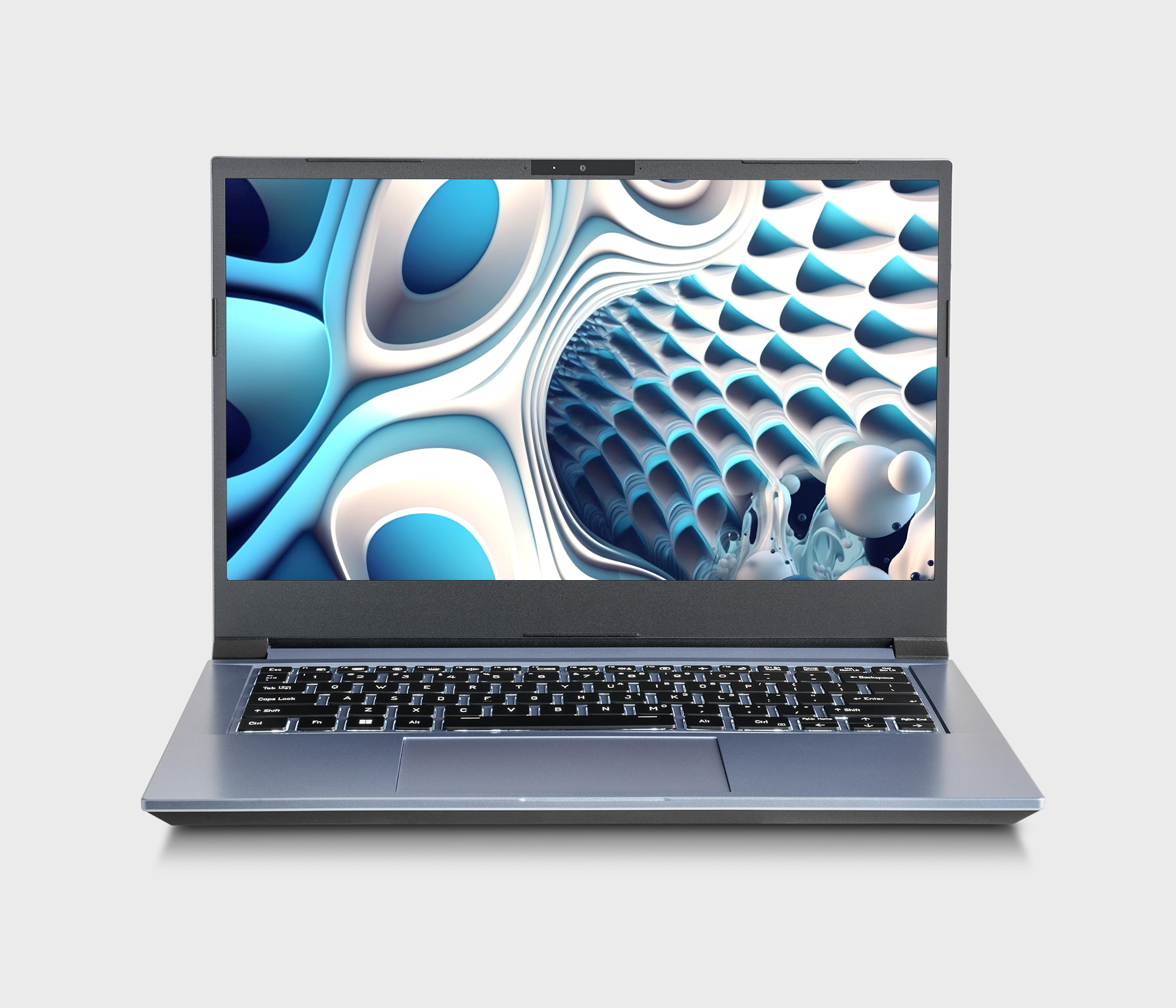

Thin Bezel
Big Screen

NP3646Z's slimmer bezels and smaller footprint make this compact powerhouse a highly-portable take-anywhere device to handle your most demanding tasks and most dazzling entertainment. Among the smallest in its class, everything shrunk but its 14" screen-size and its vast capabilities. Get the vibrant, colorful, eye-opening content you crave in a machine that packs-up fast and travels small.

144Hz Wide View Angle
72% NTSC Display

Capture huge fast action in perfect detail. At 144Hz refresh rates you get sharp brilliant picture quality 144 times per second. No blurs and no ghosting. NP3646Z’s 170 degree wide angle 72% NTSC display renders the best vivid broad-spectrum color, breathing life into every frame you see. Experience color-rich gaming the way it’s meant to be.

Multi-Display
Capability

Work across 3 screens and see the bigger picture. Your workstation supports up to 2 additional monitors via HDMI and Thunderbolt 4 ports. Approach complex or large-scale projects from different angles at the same time.

High Performance
PCIe Gen4 X 4 Capable

Wait less. Play more. The NP3646Z features ultra-fast speed PCIe Gen4 x4 SSD capabilities for load speeds of up to 7000MB/s* for blazing fast boot times and game loading.

Thunderbolt 4 with
Power Delivery Input

Maximize NP3646Z's capabilities with its 40Gbps Thunderbolt 4 port, the new standard in high speed flexibility. Connect and quickly access extra storage at lightning fast rates, or support an additional display at 8K resolution, or two displays in 4K. Daisy chain more devices than before and more securely. NP3646Z can charge while connected to Power Delivery Input (PD-In) docking, and connected peripherals can wake it from sleep with just a touch or key-press. The possibilities are endless.

Blazing Speed
Wi-Fi 6E
Connection

Tap into the full potential of ultra-fast high-capacity Wi-Fi 6E networks. Unlock the bandwidth for your whole team to dominate matches. Low latency and less interference pull out all the stops on the path to claiming your next big win.

* Wi-Fi 6E = Faster Speed, Lower Latency and Higher Capacity compares to the Wi-Fi 6

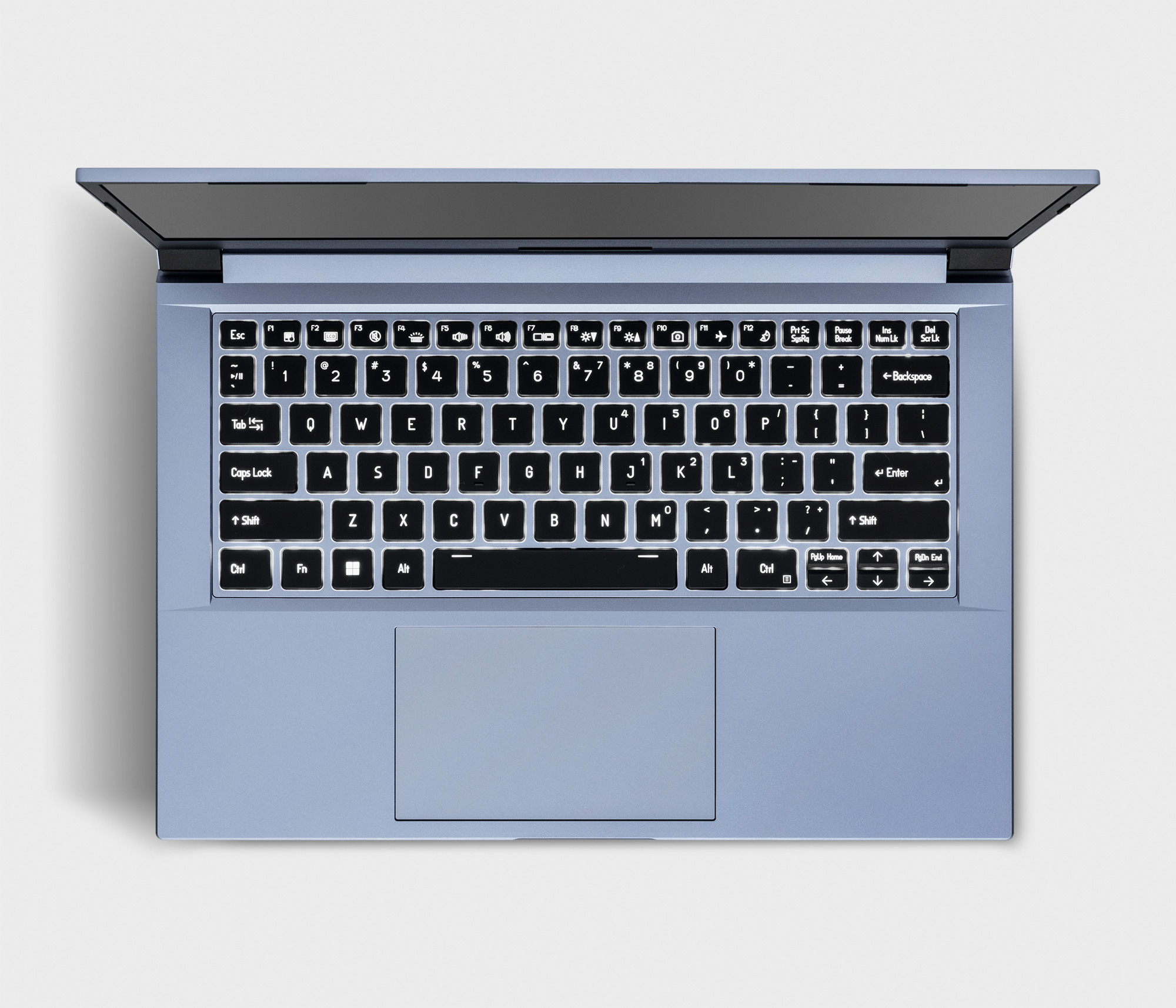

Illuminated
Keyboard

Light up your words with NP3646Z's white illuminated keyboard. This amazing technology delivers illumination bright enough to make typing and gaming easy and fun in low-light environments, even in the dark.

Processor

13th Generation Intel Core i7-13700H Processor (up to 5.00GHz Turbo boost), 6 P-cores & 8 E-cores / 20 thread, 24MB Smart Cache
13th Generation Intel Core i5-13500H Processor (up to 4.70GHz Turbo boost), 4 P-cores & 8 E-cores / 16 thread, 18MB Smart Cache
Memory

Supports Dual Channel DDR4
Two 260 Pin SODIMM sockets, support for DDR4 up to 3200MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module.
Display

14” Full HD (1920x1080) 144Hz, Wide View Angle, 72% NTSC, Matte Finished
Graphics
Processor

Intel Iris Xe Graphics (Integrated in 12th Gen Intel Core i5 / i7 Processor)
- Intel Xe Micro architecture
- Variable Rate Shading
- Microsoft DirectX 12 compatible
- Intel DLBoost: DP4A

Storage

One M.2 2280 SSD, PCIe Gen 4x4 interface
Audio System

High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers
Pointing Device

Integrated Click pad with Microsoft PTP multi-gesture and scrolling function
Keyboard

Multi-languages A4 size isolated illuminated keyboard (White Color)
I/O Ports

1 HDMI output Port (with HDCP)
1 Thunderbolt 4 combo port with Power Delivery DC in (Type C)
1 USB 3.2 Gen 2 Port (Type C)
1 USB 3.2 Gen 1 Port (Type-A)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000Mbps)
Card Reader

6-in-1 Card Reader (MMC/RSMMC/SD/Mini-SD/SDHC/SDXC)
Slots

Two M.2 Card Slots
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
Communication

Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless-Wi-Fi 6E AX211 + Bluetooth, M.2 interface
Security

Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)
Power System

Embedded 4 cells Smart Lithium-Ion battery pack, 53.35WH
Full-Range AC-in 100~240V, 50~60Hz, 90W AC Adapter, DC output 19V, 4.74A
OS Support

Windows 11 (64-bit)
Certificates

Windows 11 (64-bit) Logo
HDMI Logo
Weight and Dimensions

2.98 LBs including 53.35WH battery pack
12.79" (w) x 8.86" (d) x 0.69" (h)
Other Features

Metal top case
Built-in 1.0M HD Video Camera
FlexiCharger
Windows Mixed Reality Compatible



Specifications are subject to change without notice
